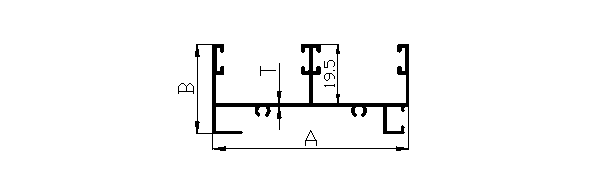

20 MM Series Two Track Top Details
Aluminium extruded 20 mm two track top sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2001L 62 29.5 0.75 0.410 1.50 1.70
2001 62 29.5 0.85 0.492 1.70 1.90
2002 62 29.5 1.00 0.546 1.90 2.10
2003 62 29.5 1.20 0.628 2.20 2.40
2004 62 29.5 1.35 0.697 2.400 2.700
2005 62 29.5 1.50 0.77 2.700 3.000
