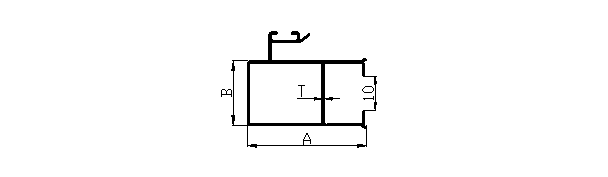

20 MM Series Interlock Details
Aluminium extruded 20 mm interlock sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2061L 39.00 20.00 0.75 0.273 1.000 1.200
2061 39.00 20.00 0.83 0.355 1.200 1.400
2062 39.00 20.00 1.00 0.410 1.400 1.600
2063 39.00 20.00 1.15 0.464 1.600 1.800
2064 39.00 20.00 1.30 0.519 1.800 2.000
2065 39.00 20.00 1.50 0.574 2.000 2.200
2066 39.00 20.00 1.70 0.628 2.200 2.400
2067 39.00 20.00 1.80 0.710 2.400 2.700
Sliding window Series
