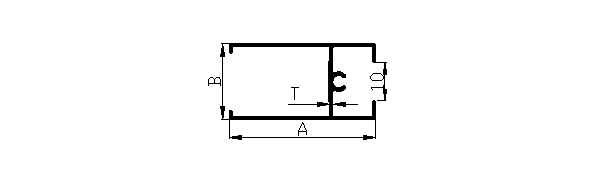

20 MM Series H Section Details
Aluminium extruded 20 mm H section sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2051L 39.00 20.00 0.75 0.219 0.800 1.000
2051 39.00 20.00 0.90 0.307 1.000 1.200
2052 39.00 20.00 1.10 0.355 1.200 1.400
2053 39.00 20.00 1.25 0.410 1.400 1.600
2054 39.00 20.00 1.40 0.464 1.600 1.800
2055 39.00 20.00 1.60 0.519 1.800 2.000
2056 39.00 20.00 1.80 0.574 2.000 2.200
Sliding window Series
