Let's create a stronger world in nature friendly way.

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note
euro Details
Aluminium extruded Euro
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min

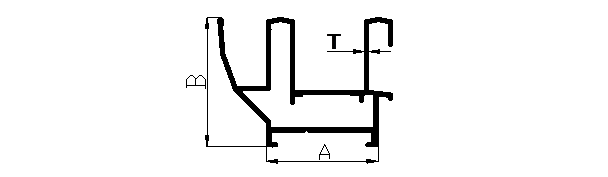

1450 AL-83 62.75 45.00 1.50 1.112 4.00
Aluminium extruded Euro
Section Number Drg No Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min

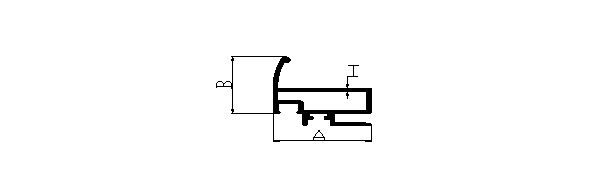

4305 AL-112 31.80 28.30 1.50 0.574 2.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

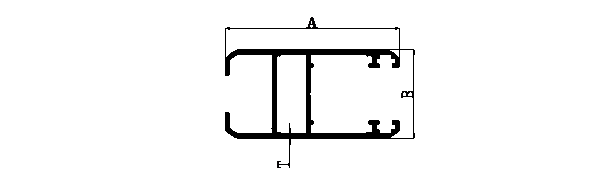

AL-246 64.70 27.10 1.50 0.856 3.000 3.300
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

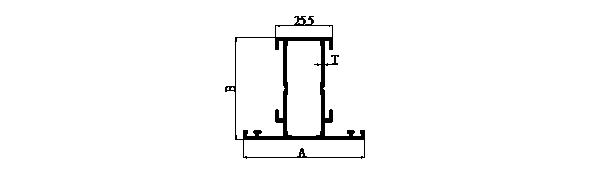

AL-248 54.50 40.50 1.80 0.683 2.400 2.600
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

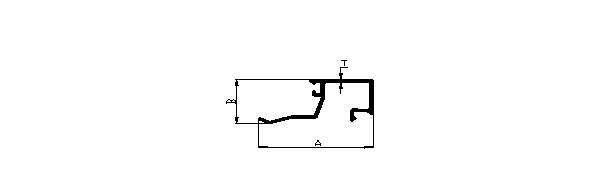

Al-510 32.31 18.26 1.20 0.222 0.810 1.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

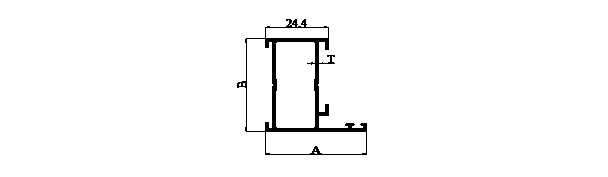

AL-249 38.90 40.50 1.30 0.583 2.000 2.200
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-449 32.31 18.26 1.20 0.230 0.800 1.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

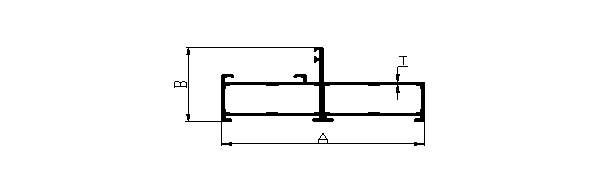

Al-507 80.00 24.50 1.30 0.989 3.500 3.800
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

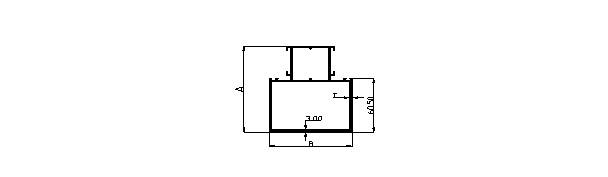

Al-516 97.10 70.10 1.80 1.998 7.200 7.750
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

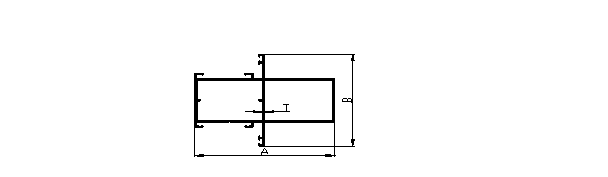

Al-517 80.00 701.00 1.50 1.296 4.500 4.900
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

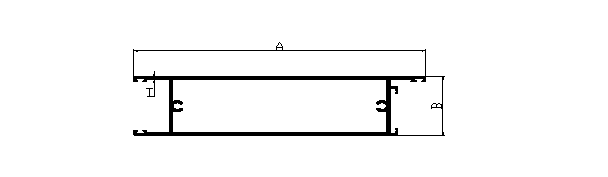

Al-578 150.00 40.00 1.80 1.903
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

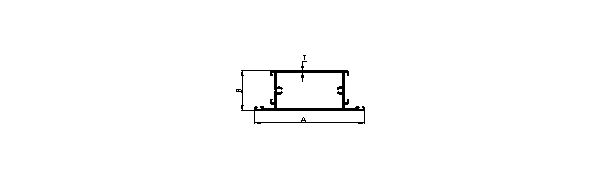

Al-579 100.00 39.70 1.50 1.640
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

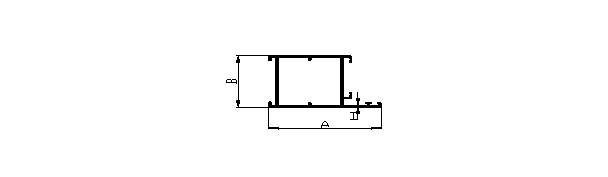

Al-580 55.00 40.00 1.50 0.771
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

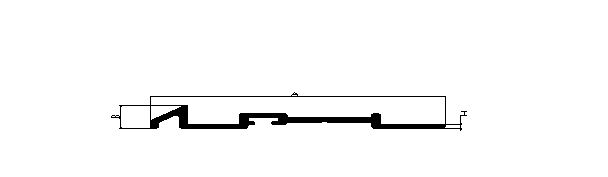

AL-582 44.00 7.80 1.30 0.233 0.800 0.900
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

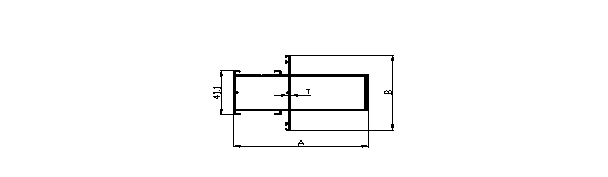

Al-583 95.00 70.10 3.00 1.563
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

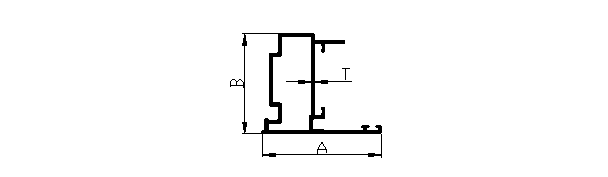

Al-592 47.30 42.90 1.30 0.662 2.350 2.600
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

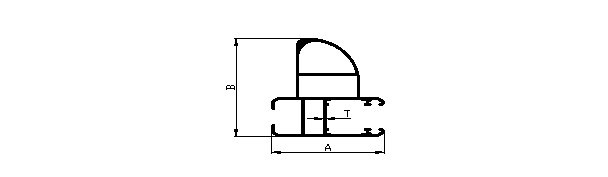

Al-593 66.95 65.00 1.50 1.475 5.300 5.800
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

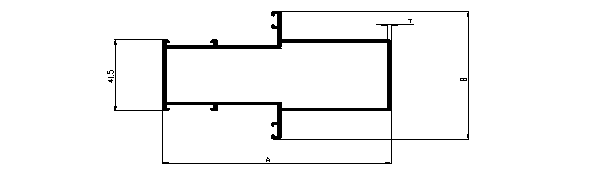

AL-648 100.00 74.50 1.60 1.473 5.200 5.700
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

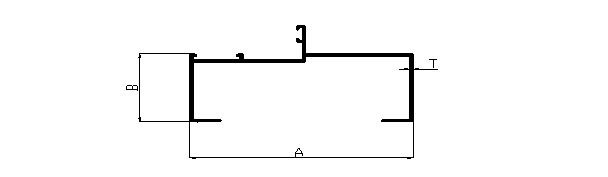

AL-649 100.00 41.10 1.60 1.019 3.600 4.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

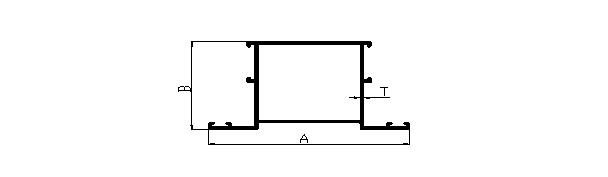

AL-650 88.00 52.00 1.60 1.143 4.000 4.400
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

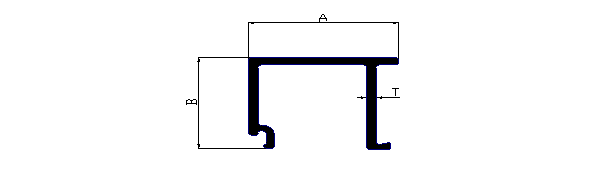

AL-651 23.50 19.10 1.50 0.253 0.900 1.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

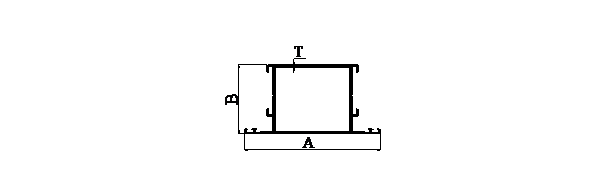

AL-666 88.10 45.00 1.50 1.019 3.700 4.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

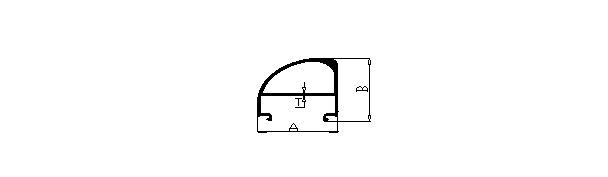

Al-688 36.68 42.70 1.50 0.641
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

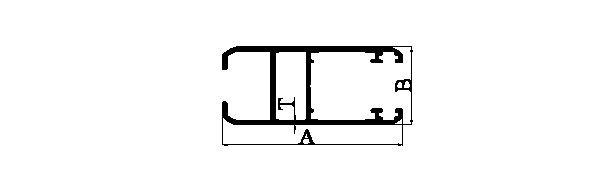

AL-708 65.00 27.10 1.60 0.907 3.150 3.450
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

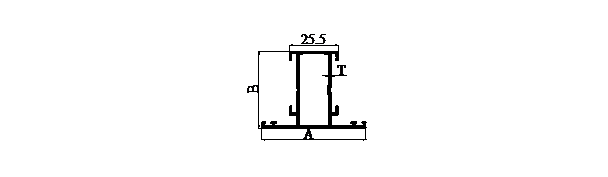

AL-709 54.50 40.50 1.30 0.683 2.400 2.600
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

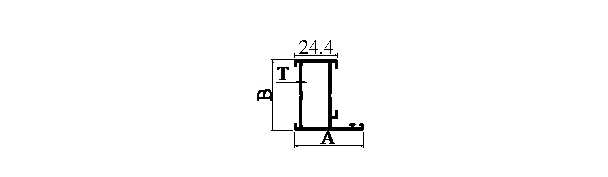

AL-710 38.90 40.00 1.30 0.583 2.000 2.200
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

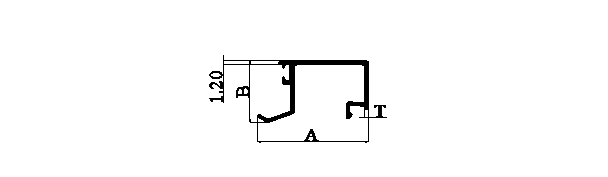

AL-711 32.31 18.26 1.00 0.230 0.800 1.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

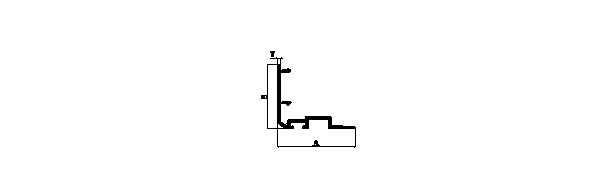

AL-715 39.00 28.50 1.50 0.332 1.150 1.300
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

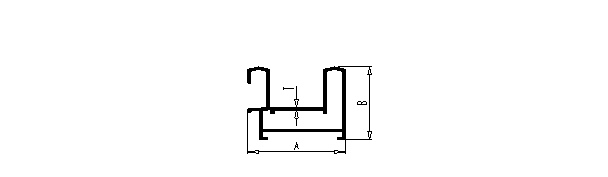

Al-742 45.00 45.00 1.50 0.883 3.200 3.500
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

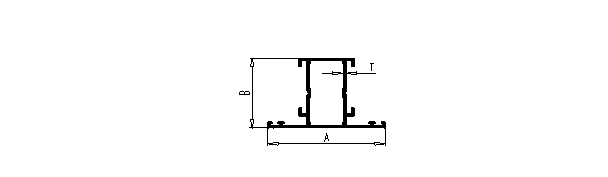

Al-743 54.50 40.50 1.30 0.683 2.400 2.600
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

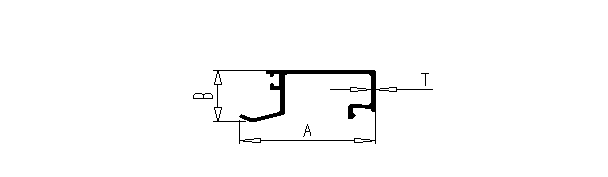

Al-744 32.31 18.26 1.00 0.230 0.800 1.000
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

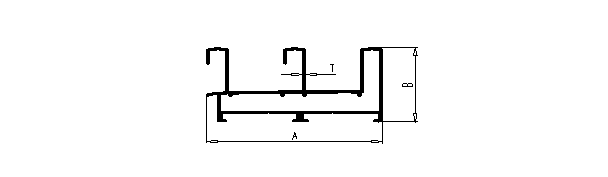

Al-745 80.00 45.00 1.40 1.354 4.800 5.300
Aluminium extruded Euro
Drg No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

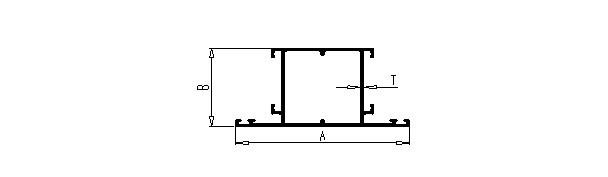

Al-746 70.10 40.00 1.50 0.961 3.100 3.400
Euro Series
