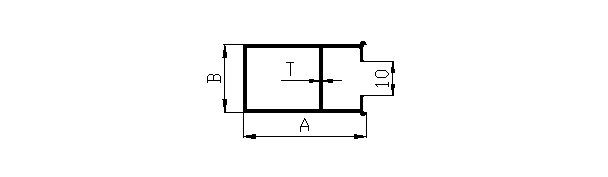

20 MM Series A/Hand Rail Details
Aluminium extruded 20 mm A section sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2041L 39.00 20.00 0.75 0.219 0.800 1.000
2041 39.00 20.00 0.90 0.301 1.000 1.200
2042 39.00 20.00 1.10 0.355 1.200 1.400
2043 39.00 20.00 1.25 0.410 1.400 1.600
2044 39.00 20.00 1.40 0.464 1.600 1.800
2045 39.00 20.00 1.60 0.519 1.800 2.000
2046 39.00 20.00 1.80 0.574 2.000 2.200
Sliding window Series
