Transmission Connector Details

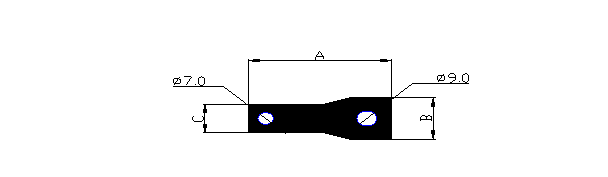

Aluminium extruded Transmission Connector
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
4255 AL-65 65.00 25.00 17.00 3.265 11.800 12.100
Aluminium extruded Transmission Connector
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

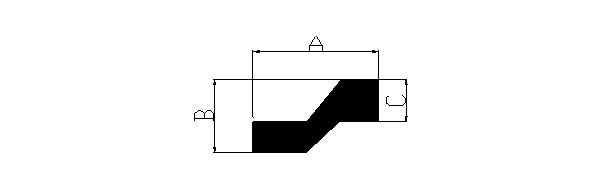

3405 AL-125 100.00 70.00 40.00 9.276 33.200 34.700

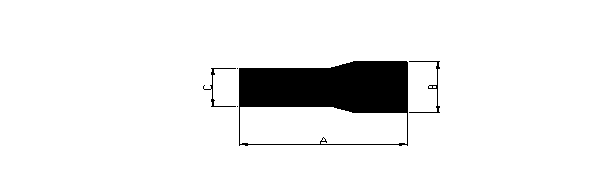

Aluminium extruded Transmission Connector
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
3410 AL-126R1 100.00 40.00 30.00 9.221 33.200 34.500
Aluminium extruded Transmission Connector
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

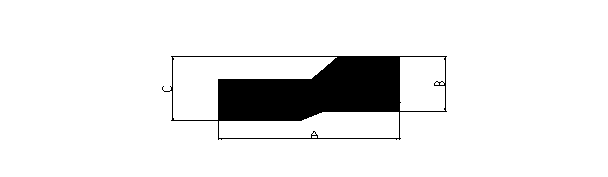

3415 AL-127R1 100.00 40.00 40.00 9.098 32.700 33.900
Aluminium extruded Transmission Connector
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
AL-128R1 26.30 24.05 3.00 0.341 2.400 2.600
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

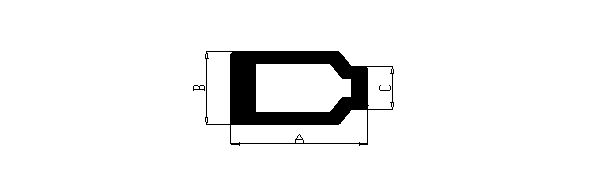

Al-706 30.60 21.60 12.60 0.909
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

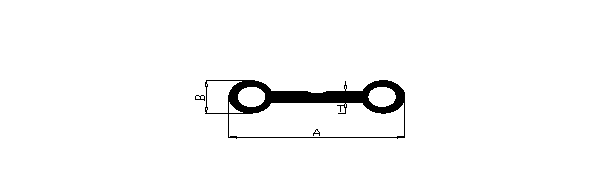

Al-705 93.00 23.00 7.50 2.218

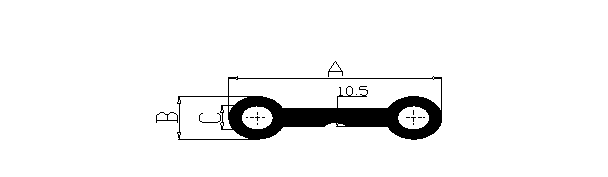

Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
Al-687 94.00 25.00 14.00 3.034
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

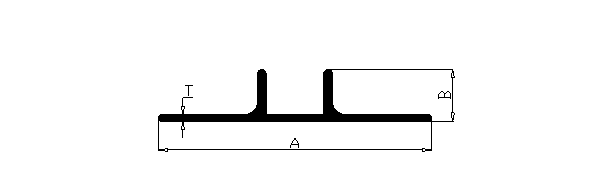

Al-684 114.70 24.70 3.20 1.438
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

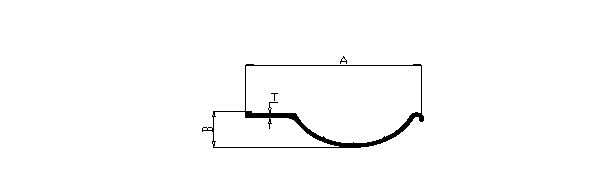

Al-685 92.30 25.00 2.75 0.737

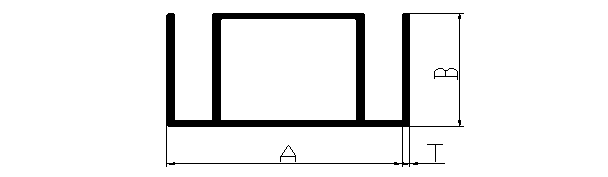

Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-872R1 32.00 20.00 1.00 0.340 1.200 1.400
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

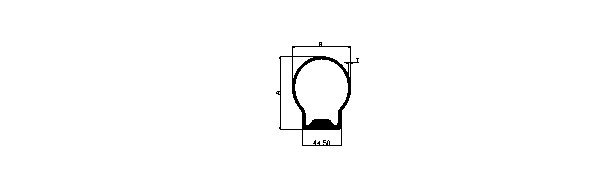

AL-874 78.00 66.75 2.63 2.270 8.000 8.600
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

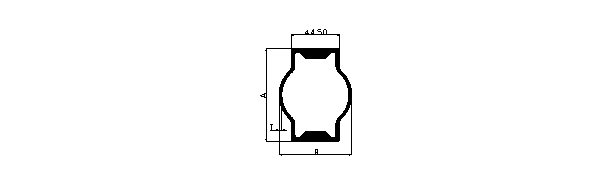

AL-875 91.00 66.65 2.63 3.150 11.000 12.000
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

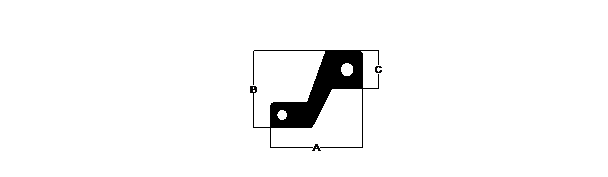

AL-293 65.00 51.00 25.00 3.640 13.000 14.000
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

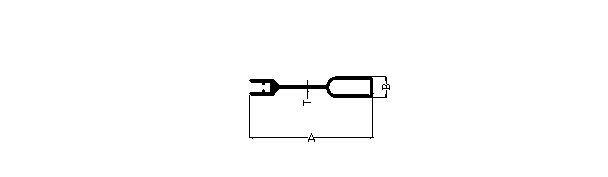

AL-236 78.50 12.50 1.50 0.637 2.300 2.500

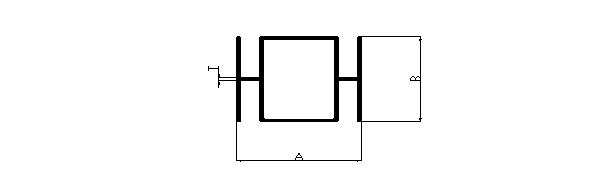

Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-881 32.00 30.00 1.00 0.448 1.600 1.800
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

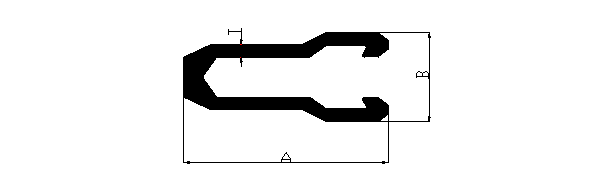

AL-882 40.00 23.00 3.20 0.868 3.300 3.600
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

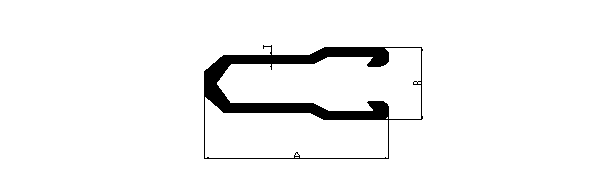

AL-883 56.40 29.70 3.60 1.360 4.850 5.200
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

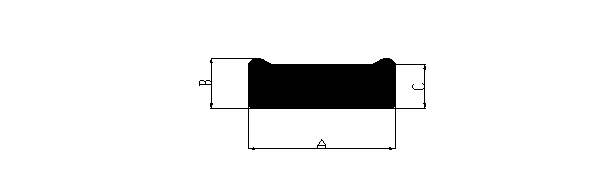

AL-884 15.50 7.50 6.10 0.266 0.960 1.060
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

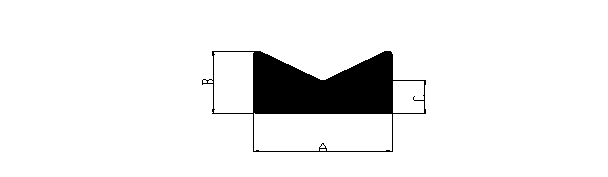

AL-885 15.70 9.50 5.00 0.312 1.050 1.200

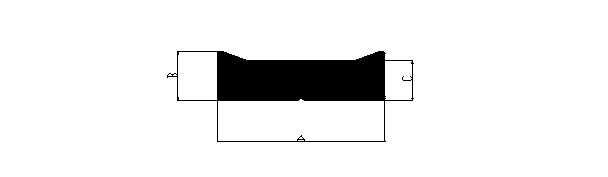

Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
AL-886 21.50 10.50 8.50 0.517 1.850 2.050

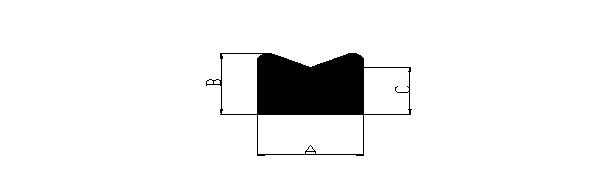

Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
AL-887 9.50 8.00 6.20 0.186 0.650 0.730
Aluminium extruded Transmission Connector
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max

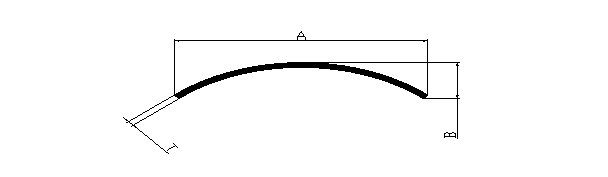

AL-873 108.00 22.40 3.00 0.939 3.400 3.600
