PG Clamp Details

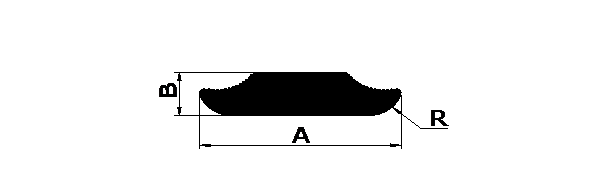

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B R Min Max
Al-489 47.55 13.00 8.00 1.309 4.600 5.000
Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight Weight Range
A B R Min Max
Al-199 22.00 6.00 3.00 0.242 0.850 1.050

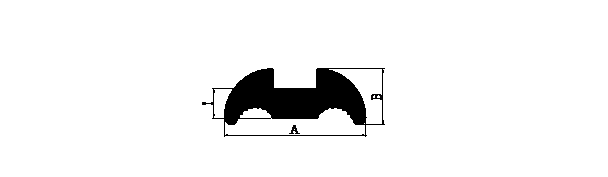

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight Weight Range
A B T Min Max
AL-549 45.50 17.00 9.00 1.226 4.350 4.750

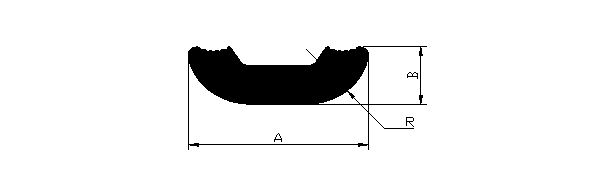

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B R Min Max
Al-550 35.80 25.80 12.40 0.864 3.000 3.300
Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-615 65.00 65.00 1.50 0.188 3.650 4.000
Al-490 63.00 63.00 1.50 0.999 3.550 3.850

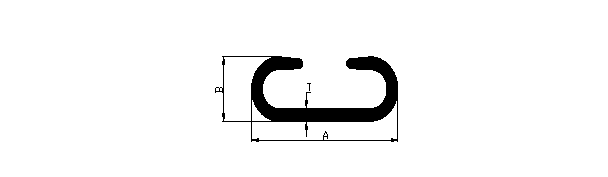

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-636 107.50 40.00 8.00 4.279

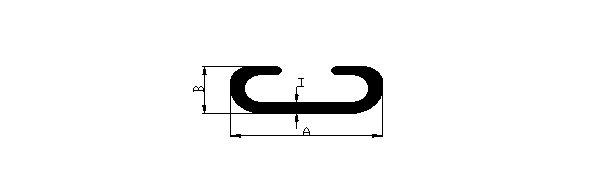

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-637 76.00 30.00 7.00 2.565
Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-435 11.00 7.00 0.165 0.580 0.780

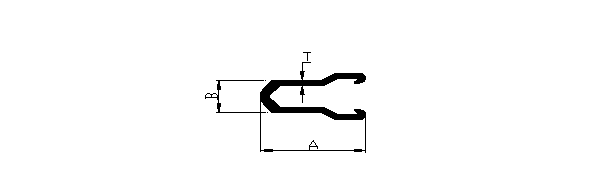

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-437 45.50 25.90 0.906 3.200 3.500

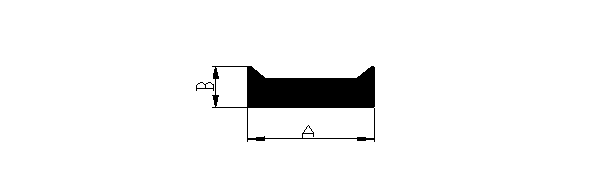

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-436 19.00 8.50 0.327 1.150 1.350

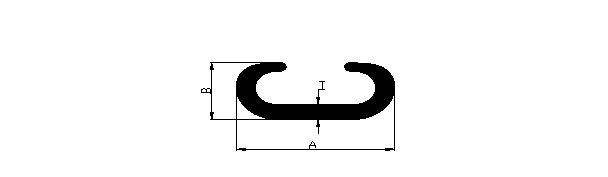

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-486 58.00 26.27 7.00 1.770 6.200 6.700

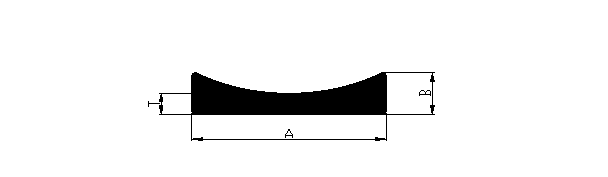

Aluminium extruded PG Clamp
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4225 AL-76 18.00 5.00 3.00 0.201 0.670 0.800
4240 AL-77 22.00 7.00 3.50 0.301 1.000 1.200

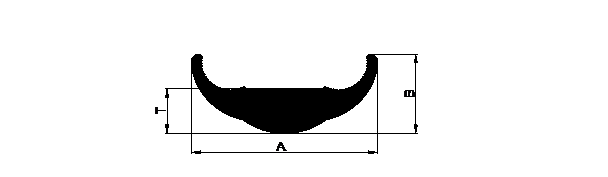

Aluminium extruded PG Clamp
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4230 AL-75 50.00 23.00 13.00 1.270 4.500 4.800
4245 AL-78 62.00 30.00 15.00 1.776 6.200 6.800

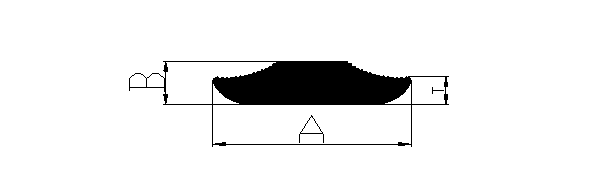

Aluminium extruded PG Clamp
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4235 AL-76 40.00 11.00 7.00 0.929 3.250 3.550
4250 AL-79 47.00 13.00 8.00 1.168 4.050 4.500

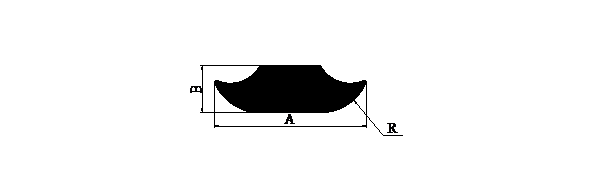

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B R Min Max
AL-422 40.00 12.00 13.00 0.930 3.300 3.600

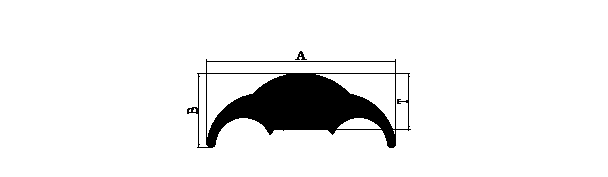

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-421 55.80 21.00 16.00 1.463 5.250 5.700

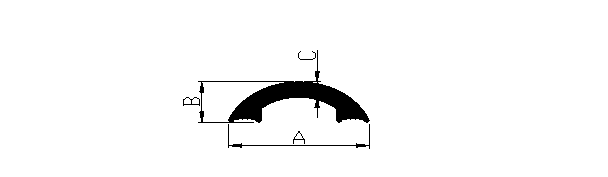

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
AL-748 43.02 15.07 6.00 0.789 2.700 3.000

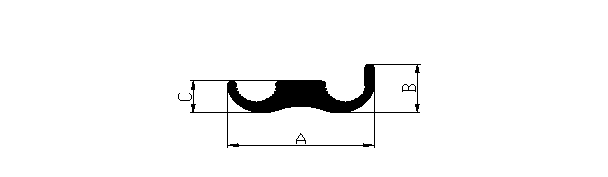

Aluminium extruded PG Clamp
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B C Min Max
AL-747 54.50 23.00 15.00 1.293 4.600 5.000
