Oval Tube Details

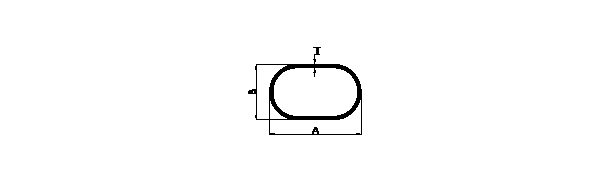

Aluminium extruded Oval Tube
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4001 AL-114 22.00 13.00 2.00 0.301 1.000 1.200
4011 AL-63 26.20 15.10 1.60 0.301 1.000 1.200
4021 AL-64 34.95 19.50 1.60 0.396 1.350 1.550
- AL-704 31.30 17.80 1.50 0.316 1.100 1.250
Aluminium extruded Oval Tube
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
Al-542 25.00 28.80 16.30 0.921 3.300 3.600
Al-543 37.00 42.60 23.00 2.075 7.450 8.000
Al-707 24.00 26.75 14.20 0.856 3.200 3.500

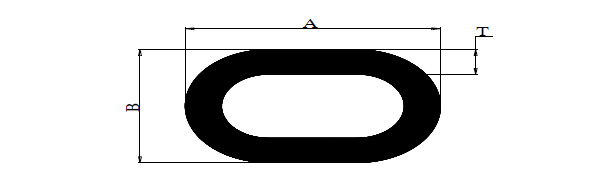

Aluminium extruded Oval Tube
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-934 36.60 23.90 5.20 1.181 4.100 4.550
