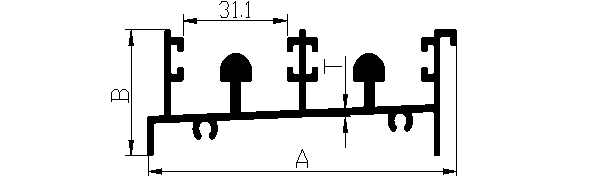

Two Track Bottom Detail|Aluminum Extruded Sliding Door

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
2121	92.60	32.00	1.50	1.393	4.900	5.300
2122	92.60	32.00	1.60	1.503	5.300	5.700
2123	92.60	32.00	1.75	1.612	5.700	6.100
