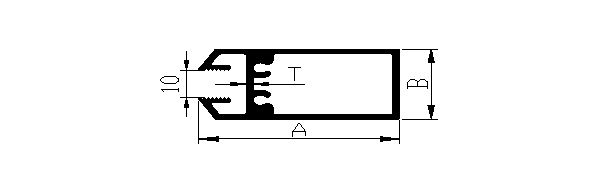

A Section Detail|Aluminum Extruded A Section Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
2141	50.80	25.40	1.50	0.833	2.900	3.200
2142	50.80	25.40	1.60	0.915	3.200	3.500
2143	50.80	25.40	1.90	0.997	3.500	3.800
