Solar Section Details

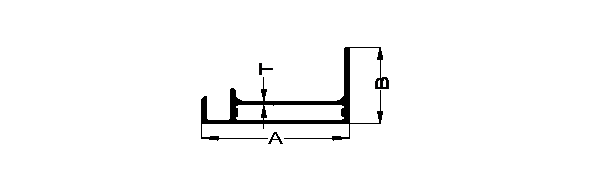

Aluminium extruded Solar Section
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4121 Al-80 36.00 25.00 1.20 0.369 1.250 1.450

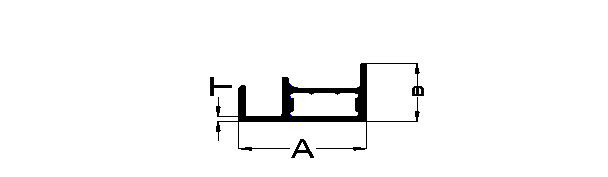

Aluminium extruded Solar Section
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4125 AL-81 19.80 12.00 1.00 0.191 0.600 0.800

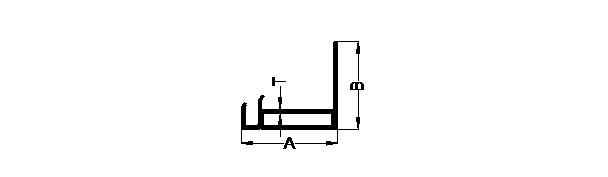

Aluminium extruded Solar Section
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-808 35.00 30.00 1.30 0.408 0.370 0.440

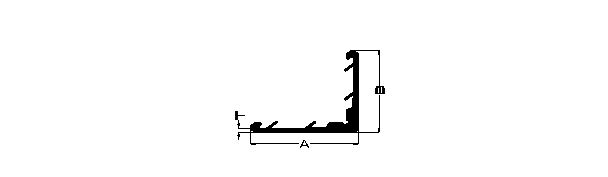

Aluminium extruded Solar Section
Section Number Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
4130 AL-82 40.10 40.10 2.00 0.656 2.300 2.500

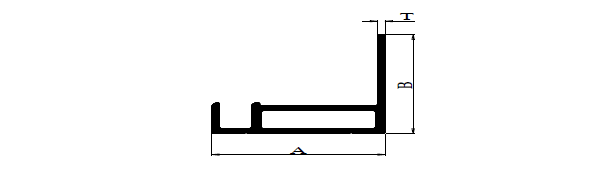

Aluminium extruded Solar Section
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
AL-928 29.70 25.00 1.30 0.311 1.050 1.200
Solar Section Series
