C Section Detail|Extruded Aluminum Ladder Section

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

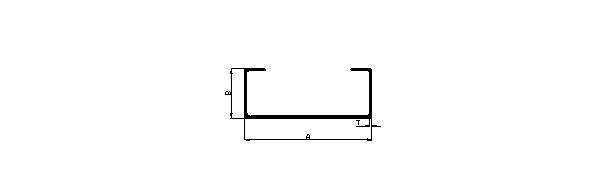

Section Number	Dimension in MM			Nominal Weight (Kg / m )	Weight Range
Section Number	A	B	T	Nominal Weight (Kg / m )	Min	Max
1760L	66.68	31.75	1.10	0.355	1.200	1.400
1760	66.68	31.75	1.30	0.410	1.400	1.600
1761	66.68	31.75	1.40	0.464	1.600	1.800
1762	66.68	31.75	1.60	0.546	1.900	2.100
1764	66.68	31.75	2.30	0.738	2.600	2.800
1765	66.68	31.75	4.00	1.257	4.400	4.800

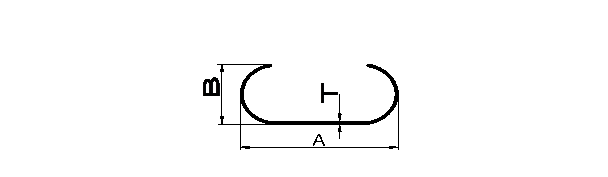

Section Number	Dimension in MM			Nominal Weight (Kg / m )	Weight Range
Section Number	A	B	T	Nominal Weight (Kg / m )	Min	Max
1766	68.6	25.00	1.20	0.647	2.30	2.50
