Unequal angle Details

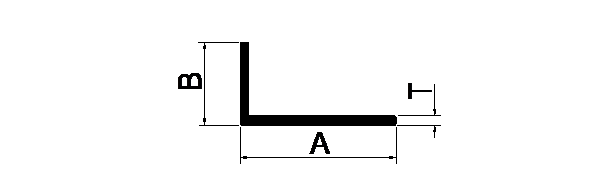

Aluminum extruded unequal angle
Section Number Drg No. Dimension in MM Nominal Weight (Kg / m ) Weight Range (Kg/12')
A B T Min Max
5055 AL-850R1 11.00 6.00 1.00 0.043
5060 AL-824 19.50 11.50 1.50 0.119
5070 AL-825 30.00 17.00 2.00 0.243
3106 38.10 25.40 2.15 0.376 1.25 1.50
3111 50.80 25.40 2.85 0.574 2.00 2.20
5082 AL-828 52.00 20.00 2.00 0.378
AL-790 60.00 30.00 10.00 2.160 7.80 8.50
AL-789 130.00 60.00 12.00 5.770 20.80 21.80
4002 AL-117 150.00 50.00 8.00 4.153 14.80 15.60
4003 AL-657 150.00 50.00 10.00 5.131 18.50 19.40
Angle Series
