U Channel Detail|Aluminum Extruded U Channel Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

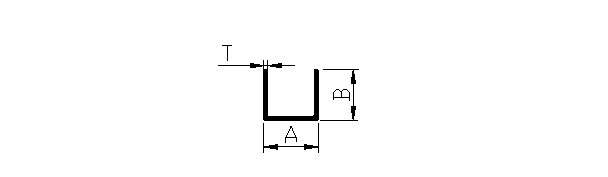

Section Number	Drawing No.	Dimension In MM			Nominal Weight	Weight Range
Section Number	Drawing No.	A	B	T	Nominal Weight	Min	Max
3500L		9.00	9.00	0.50	0.038	0.125	0.150
3500		9.00	9.00	1.00	0.068	0.240	0.260
3501L		12.00	11.00	0.60	0.048	0.160	0.190
3501		12.00	11.00	0.90	0.081	0.280	0.310
5126	AL-837	12.00	12.00	1.50	0.132
	AL-512	15.00	10.00	1.50	0.149
5134	AL-858	19.00	19.00	1.50	0.217
5140	AL-841	23.00	23.00	1.50	0.267
5142	AL-839	25.00	15.00	1.50	0.211
