Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

bulb tee Details

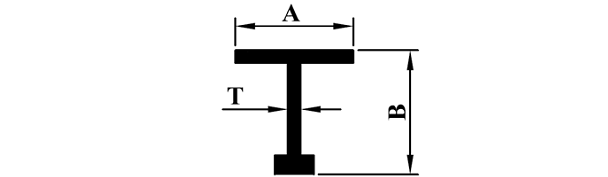

Aluminium extruded Bulb Tee
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
3301 25.4 25.40 1.00 0.138 0.480 0.530
3302 25.4 25.40 1.30 0.205 0.700 0.800
3311 38.1 25.40 1.10 0.191 0.650 0.750
3315 38.1 38.10 1.35 0.287 1.000 1.100
3325 38.1 38.10 3.50 0.628 2.200 2.400

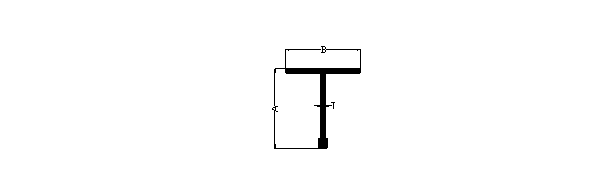

Aluminium extruded Plain Tee
Section Number Dimension In MM Nominal Weight Weight Range
A B T Min Max
AL-235 23.50 23.50 1.45 0.190 0.650 0.850
