PhotoFrame Detail|Aluminum Extruded PhotoFrame Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

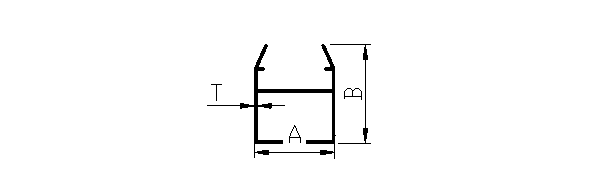

Section Number	Dimension In MM			Nominal Weight (Kg/m)	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/m)	Min	Max
1442	17.30	19.90	0.60	0.123	0.430	0.470

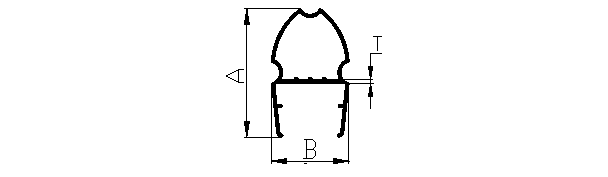

Section Number	Drawing No.	Dimension In MM			Nominal Weight (Kg/m)	Weight
Section Number	Drawing No.	A	B	T	Nominal Weight (Kg/m)	Min
4311	AL-169	24.50	15.20	0.65	0.143	0.45
