Z Angle Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

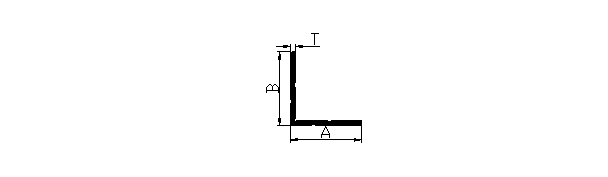

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1341	50.00	50.00	3.80	0.97	3.55	4.00
1342	50.00	50.00	4.20	1.230	4.00	4.80
1343	50.00	50.00	6.20	1.571	5.50	6.00
