Louver Details

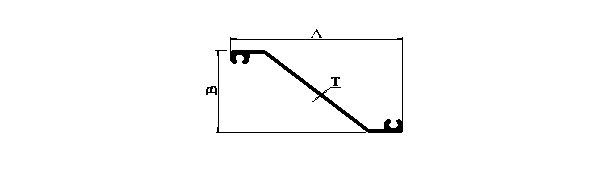

Aluminium extruded Louver
Drg. No Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-753 76.20 46.00 1.50 0.524 1.820 1.950

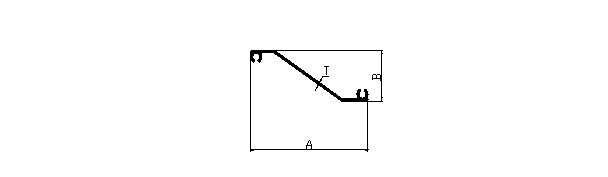

Aluminium extruded Louver
Drg. No Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-794 76.20 28.50 1.50 0.437 1.550 1.750

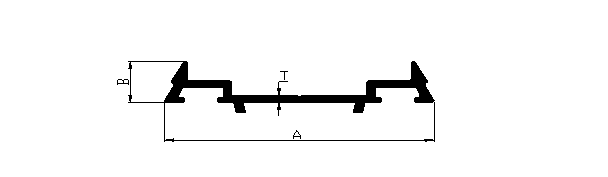

Aluminium extruded Louver
Section Number Drg. No Dimension In MM Nominal Weight (Kg/ m ) Weight Range
A B C Min
4270 AL-146 55.20 11.80 2.00 0.519 1.800

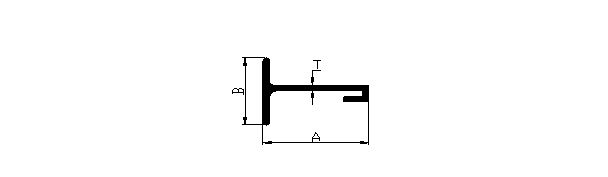

Aluminium extruded Louver
Section Number Drg. No Dimension In MM Nominal Weight (Kg/ m ) Weight Range
A B C Min
4280 AL-162 37.00 48.00 3.00 0.806 2.800
Louver Series
