Curtain Wall and Structural Glazing Details
Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
Al-234R1 33.00 8.00 1.50 0.183 0.650 0.850
Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max

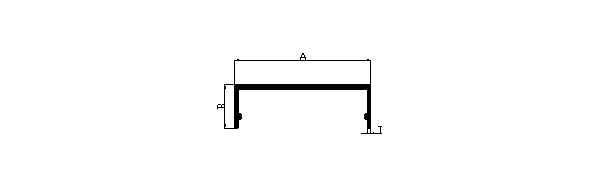

AL-241 49.40 1.30 14.90 0.325 1.200 1.400

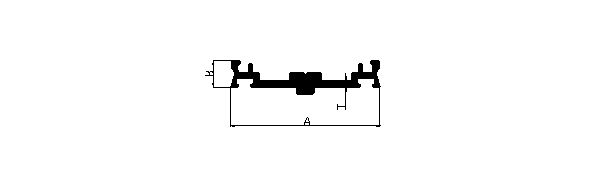

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-242 46.70 7.80 1.90 0.432 1.550 1.750

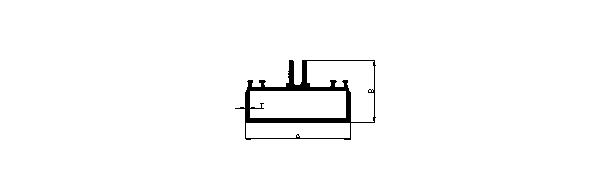

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-243 50.00 31.50 1.90 0.894 3.200 3.500

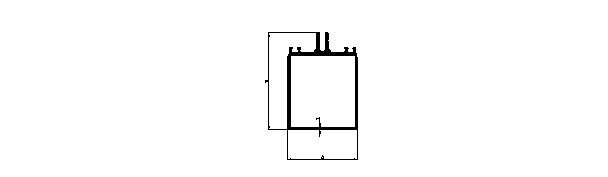

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-257 50.00 65.50 1.70 1.139

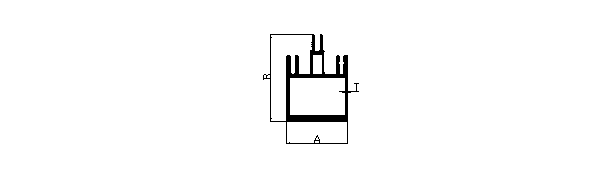

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
AL-258 49.60 65.60 2.05 1.874 6.600 7.200
Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max

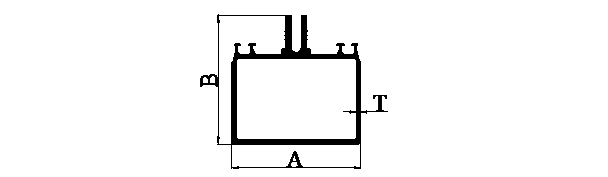

AL-291 50.00 45.10 1.70 0.917 3.300 3.600

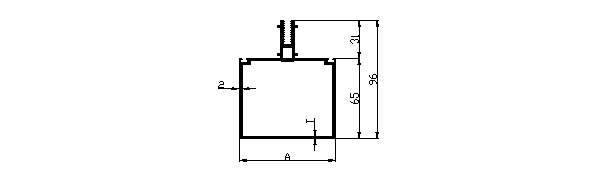

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
Al-552 65.00 96.00 2.00 1.858 6.700 7.200

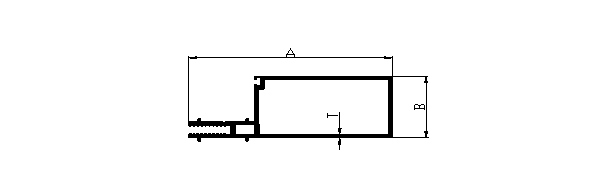

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
Al-553 96.00 38.50 2.00 1.537 5.550 5.900
Aluminum extruded curtain wall and structural glazing
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1422 63.50 50.80 1.80 1.161 4.100 4.500
1422/H 63.50 50.80 2.00 1.380 4.500 4.900
1423 63.50 50.80 2.00 1.393 4.900 5.300
Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max

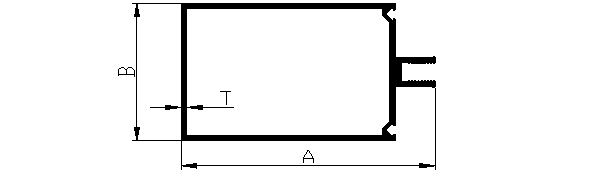

1425 114.00 50.80 1.80 1.694 5.900 6.500
1426 114.00 50.80 2.00 1.858 6.500 7.000

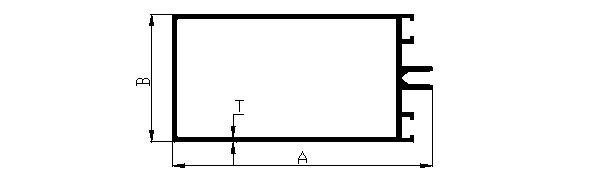

Aluminum extruded curtain wall
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1427 104.00 55.00 2.00 1.708 6.100 6.600
Aluminum extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/ m ) Weight
A B T Min

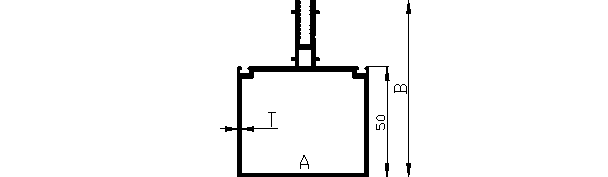

1440 AL-58 67.00 81.00 2.00 1.694 6.00

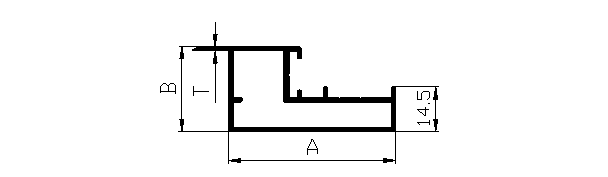

Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min
1443 AL-59 55.10 27.50 1.40 0.779 2.70
Aluminum extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/ m ) Weight
A B T Min

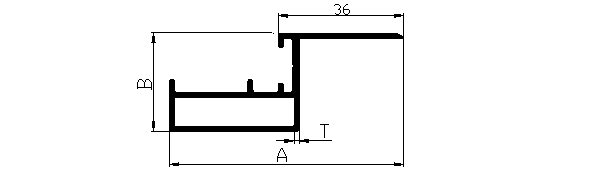

1445 AL-60 37.10 27.50 1.40 0.60 2.20

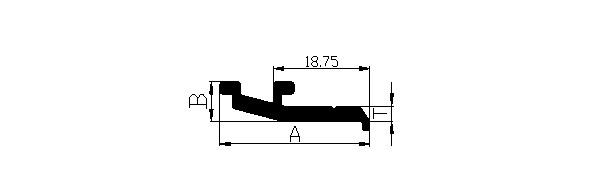

Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min
1448 AL-61 29.25 6.45 2.50 0.23 0.80
Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min

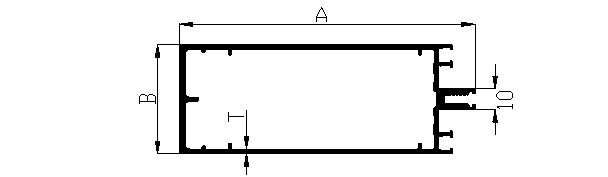

1452 AL-95 129.50 52.00 2.00 2.44 8.80
Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min

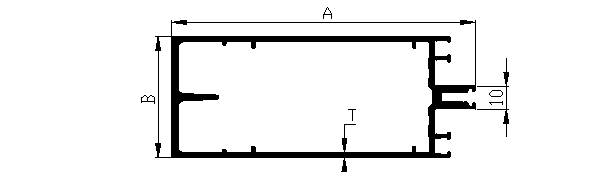

1455 AL-96 120.00 52.00 2.20 2.40 8.60

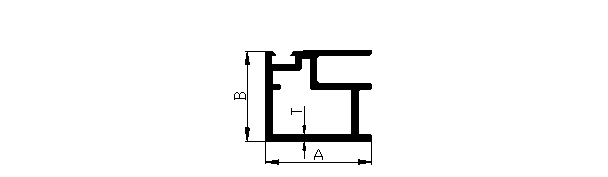

Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min
1456 AL-97 23.96 20.20 1.50 0.391 1.40

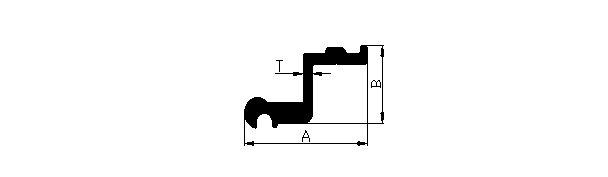

Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min
1454 AL-128 26.23 15.55 3.00 0.34 1.20
Aluminium extruded curtain wall
Section Number Drawing No. Dimension In MM Nominal Weight (Kg/m) Weight
A B T Min

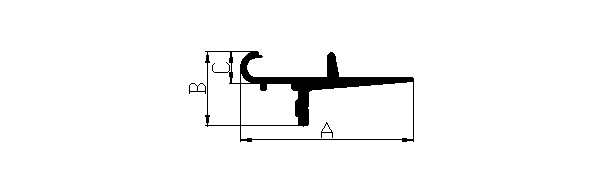

1460 AL-99 47.00 20.90 9.00 0.450 1.65
